Sauna Chimney Kits for Wood-Burning Heaters
Compare three chimney routes for a wood-burning sauna stove, see the differences at a glance and ask ZAPARA to confirm the right kit before you order.
- Three installation routes
- 115 mm connection options
- Canada-wide project support
Confirm the exact kit.
Start with the building path
Choose the route your sauna allows.
A chimney kit is not selected by appearance alone. The heater outlet, ceiling and wall construction, clearances, roof position and local requirements all affect the final configuration.
Turn before the exterior stack
Out the side
The connector changes direction and passes through a wall before the insulated exterior section rises. Two side-exit configurations are available below. See the side-exit kitsSauna chimney kits in Canada
Three kits. One clear comparison.
These products are already available through ZAPARA. Review the route and reference, then open the product page for current purchase details.
Through-roof routeReference SB214
Wood-stove chimney kit

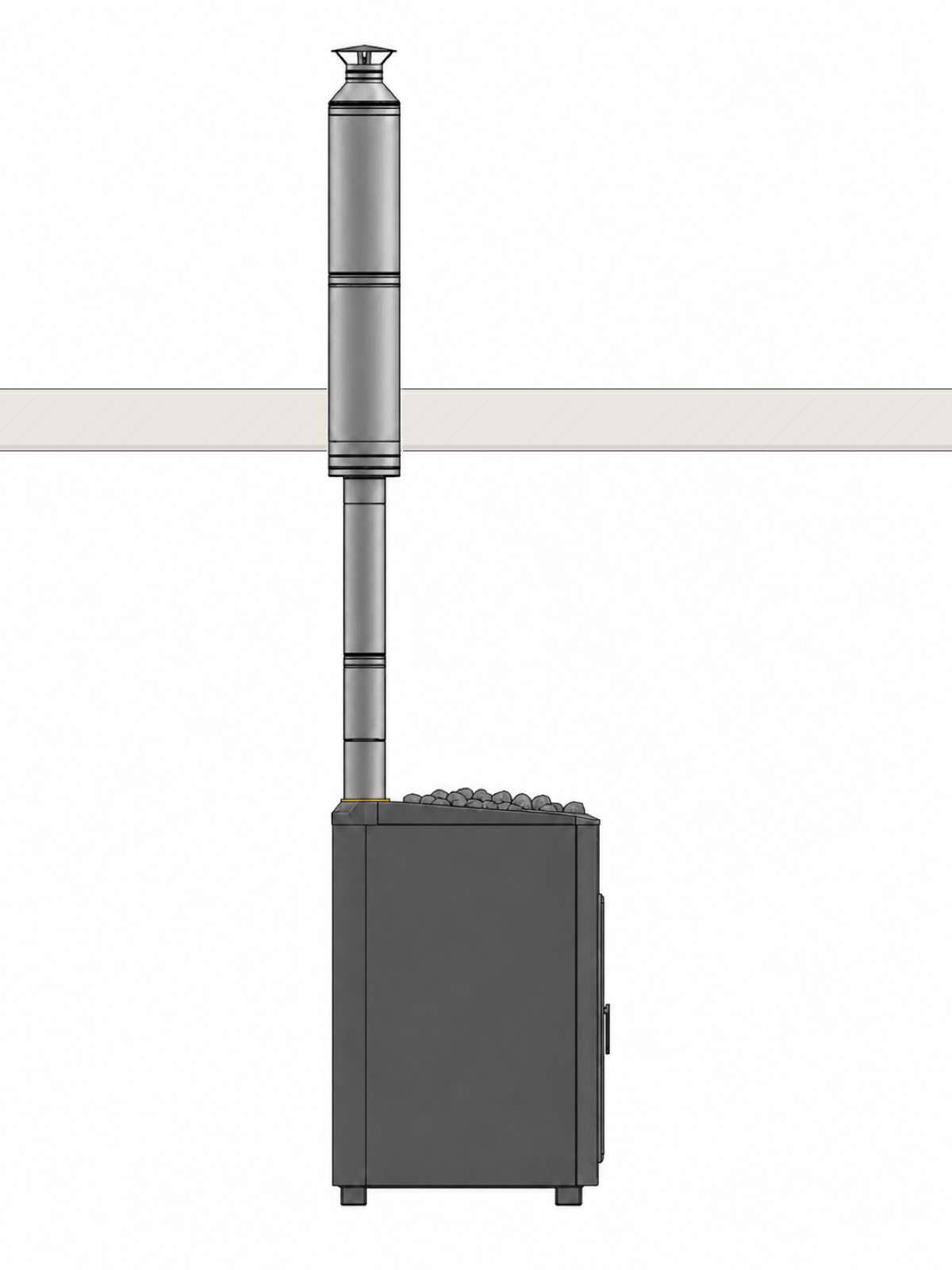

Chimney Out the Top
A straight-route sauna chimney kit for projects that can continue vertically from the stove connection through the roof assembly.
- Vertical, through-roof configuration
- 115 mm stove connection
- Reference model SB214
Current ZAPARA price$681.00 CAD
View product↗Side-exit routeReference CHISID
Wood-stove chimney kit

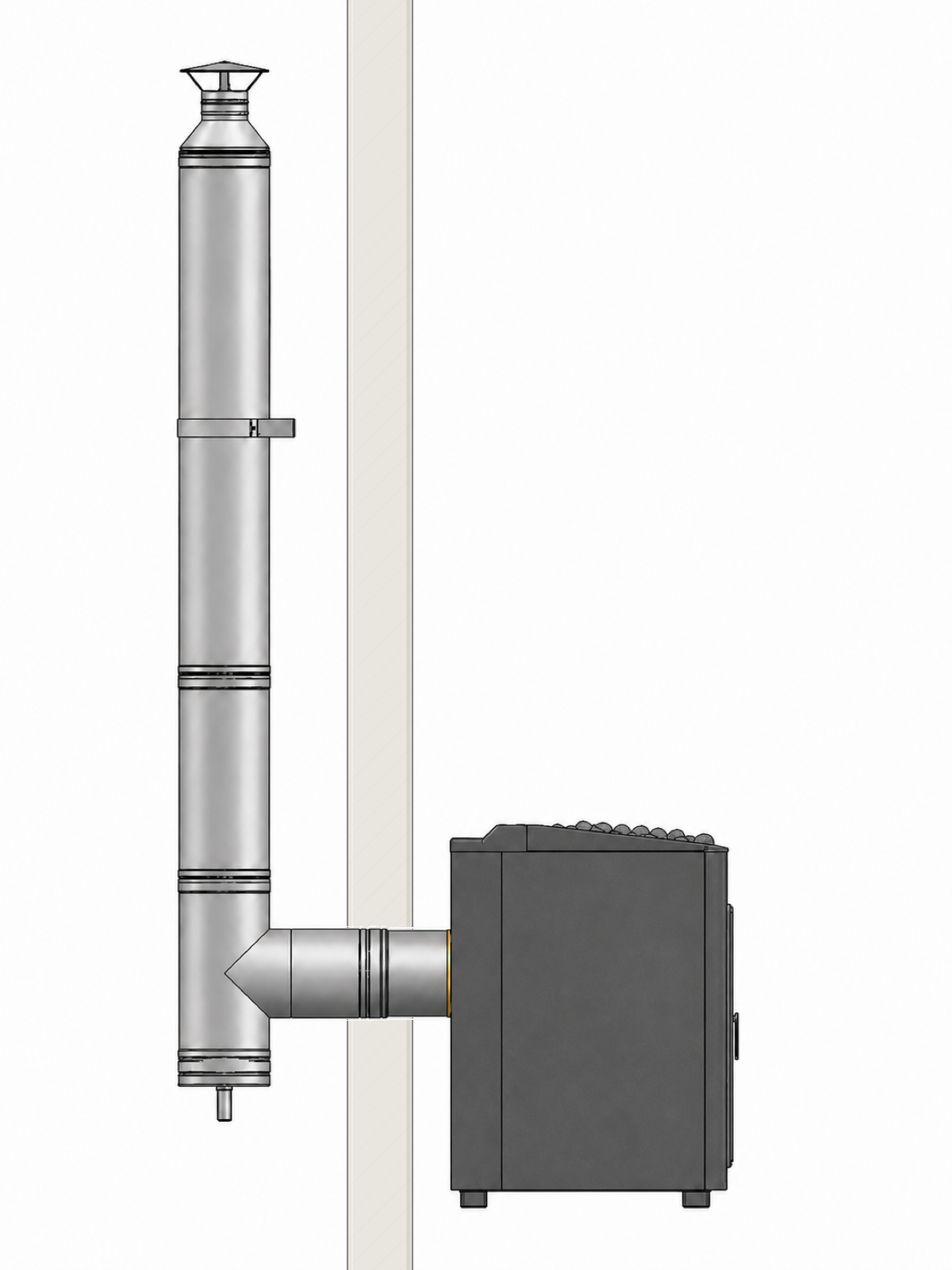

Chimney Out the Side
A through-wall chimney route for selected wood-burning sauna heater installations, with an exterior vertical stack configuration.
- Through-wall side-exit configuration
- 115 mm stove connection
- Reference model CHISID
Current ZAPARA price$1,058.50 CAD
View product↗Side-exit routeReference SB225
Wood-stove chimney kit

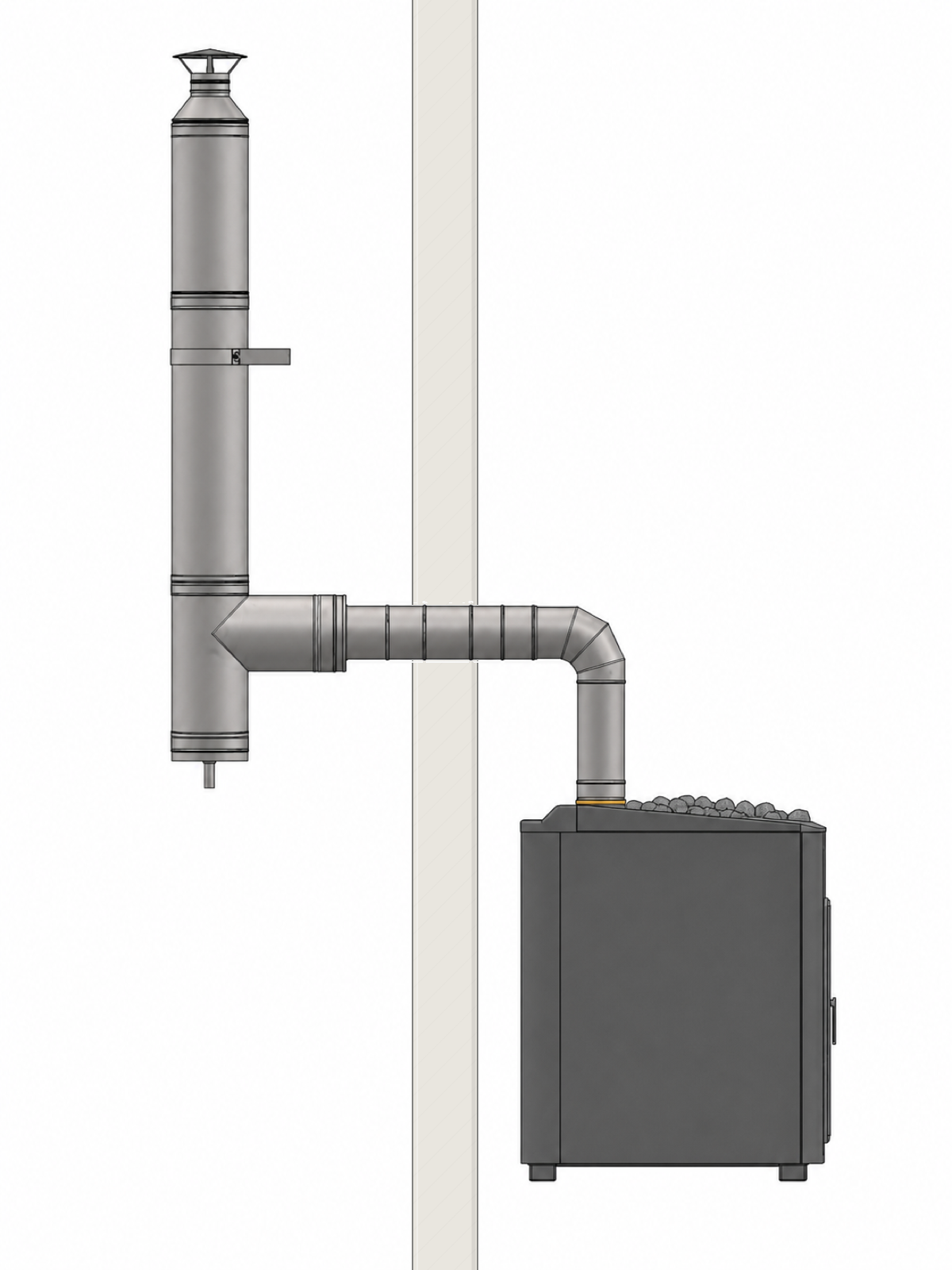

Chimney Kit with Elbow
A side-exit option that turns from the stove connection toward the wall before continuing upward on the exterior.
- Interior elbow and wall-exit route
- 115 mm stove connection
- Reference model SB225
Current ZAPARA price$1,619.50 CAD
View product↗Route comparison
See what changes between the kits.
The best option is the one that matches both the stove and the building path. This overview helps narrow the choice; it does not replace a project-specific installation review.
| Product | Route | Reference | Connection | Use this comparison when | Price |
|---|---|---|---|---|---|
| Chimney Out the Top | Through roof | SB214 | 115 mm | A clear vertical route above the stove is being evaluated. | $681.00 CAD |
| Chimney Out the Side | Through wall | CHISID | 115 mm | A side-exit route is planned and model fit still needs confirmation. | $1,058.50 CAD |
| Chimney Kit with Elbow | Side + elbow | SB225 | 115 mm | The connector must turn before passing through the wall. | $1,619.50 CAD |
On a phone, swipe the table left or right to compare all columns.
Before you order
Confirm the stove, route and building assembly.
Chimney components are part of a heat and venting system. Clearances, supports, penetrations and adapters must be checked for the exact sauna heater and site—not assumed from a product photo.
Request a fit check- 01
Identify the heater
Send the brand, exact model and outlet size. A 115 mm connection is useful information, but diameter alone does not prove full-system compatibility.
- 02
Map the chimney route
Share the ceiling height, wall or roof location and photos or a drawing. Note every turn and the distance between the heater and the planned penetration.
- 03
Verify the installation
Confirm required clearances, shielding, listed components and local rules with the installation instructions and the qualified professional responsible for the work.
Installation and safety notice
Final chimney design and installation must follow the heater and chimney manufacturers’ instructions, applicable building and fire requirements, and the authority having jurisdiction. Do not assume that the heater, floor shield, wall shield or every site-specific part is included. Narvi installations may require a separate adapter; confirm the exact model before purchase.
A complete wood-fired setup
Plan the chimney with the heater—not after it.
The flue route affects heater placement, protective surfaces and the way the room is built around the stove. If you are still choosing the heater, compare ZAPARA’s wood-burning sauna stoves first. If you already own one, send the model information so the chimney route can be reviewed as one system.
01Heater model
→
02Building route
→
03Matching kit
Buying guidance
Sauna chimney kit questions.
Still comparing an out-the-top and out-the-side chimney? These answers explain what to prepare before speaking with our team.
Ask a different questionShould a sauna chimney go through the roof or through the wall?
That depends on the heater position and the available route through the building. A top-exit kit follows a vertical path. A side-exit configuration turns toward a wall and then continues upward outside. Clearances, penetrations, supports and local requirements must be reviewed for either option.
Are these chimney kits universal?
No chimney kit should be treated as automatically universal. The heater model, outlet, required adapter, installation geometry and listed chimney system all matter. Ask ZAPARA to confirm the intended combination before purchase.
Does a 115 mm connection guarantee compatibility?
No. The connection diameter is only one checkpoint. Component listing, adapter requirements, clearances and the complete planned route must also match the heater and installation instructions.
What should I send for a compatibility check?
Send the heater brand and model, a photo of its label and outlet, ceiling height, wall or roof construction, the proposed exit location and a simple drawing with measurements. More complete project information makes the initial review more useful.
Are the heater and protective shields included?
Do not assume they are included with a chimney kit. Review the selected product page and your ZAPARA quote for the exact supplied components, then identify any heater, floor protection, wall protection or site-specific parts required separately.
Can ZAPARA help with delivery?
Yes—contact ZAPARA with your postal or ZIP code and the products you need. The team can confirm current availability and the appropriate delivery or pickup option for your location.
Expert help before checkout
Not sure which chimney route fits your sauna?
Send us your heater model, measurements and a few site photos. We’ll help you identify the product page to review and the questions your installer needs to resolve.
