Through roof
Straight chimney kit passing through a shingled sauna roof

The roof cutaway shows the timber framing between the roof deck and cedar ceiling.

Sauna chimney kit · Through-roof route

Chimney Out the Top

SB214Straight roof-exit system

The SB214 creates a direct vertical chimney route from a compatible wood-burning sauna heater through the ceiling and roof. It brings the connector, insulated chimney, roof-sealing and interior finishing components together in one planned system.

$681.00CAD
Explore in 3D

Pay online for eligible in-stock items, or submit your order without payment. Our team will contact you to confirm availability and delivery.

One in-stock heater with eligible small accessories ships free in Canada to the closest Manitoulin terminal. Home delivery and parcel shipping are calculated separately. Remote areas or orders without verified shipping details require a quote.

Sauna heater, sauna stones, floor shield and wall heat shields are not included.

  • Compatibility checkWe can review the heater and planned route before fulfilment.
  • Canada-wide supportShipping options are confirmed for the destination.

Interactive model

Explore the chimney kit in 3D

See the Harvia M3 in a 7-foot sauna and follow the chimney through the roof. Switch to Exploded View to explore the kit parts.

Product overview

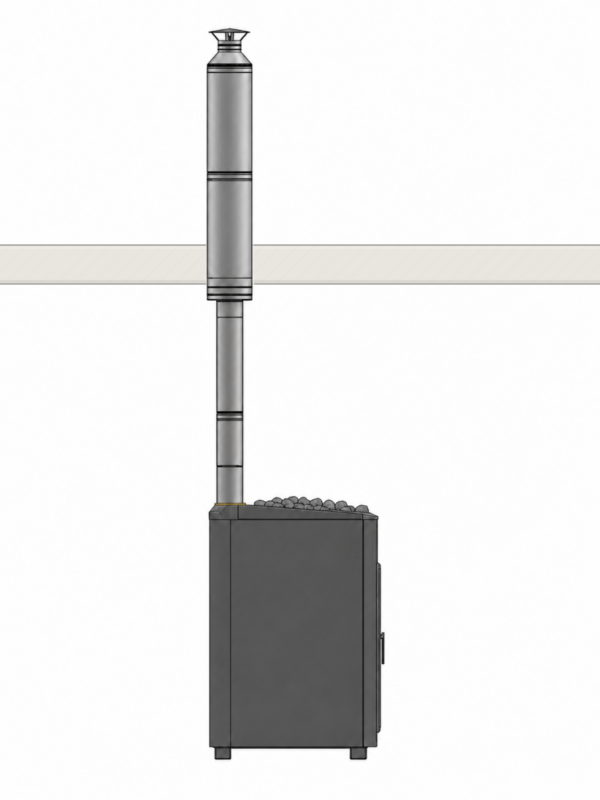

Straight roof-exit system

The SB214 through-roof sauna chimney kit is designed for projects where the flue can rise vertically from the wood-burning sauna heater and continue through the roof. A straight route keeps the layout clean and avoids the heater-side elbow required by many side-exit installations.

The system combines rigid connector sections below the ceiling with insulated double-wall chimney sections above. The supplied roof seal and finishing plate complete the penetration area, while the cap and mounting components finish the exterior stack. Confirm the exact section lengths, roof construction and required clearances for your heater and building before ordering.

System components

What’s included

Components follow the manufacturer’s system diagram. Final quantities and section lengths should be checked for your installation.

  1. 01Chimney cap and top mounting tip
  2. 02Two insulated double-wall chimney sections
  3. 03Lower transition tip
  4. 04Straight rigid connector sections
  5. 05Rubber roof seal and tightening clamp
  6. 06Interior finishing plate
  7. 07Sealant and fastening hardware shown in the manufacturer diagram

Technical reference

Chimney kit specifications

Installation route
Straight through the ceiling and roof
Nominal flue diameter
≈4.53″ (115 mm)
Insulated chimney outer diameter
≈7.87″ (200 mm)
Top and bottom chimney stacks
31″ each
Rigid inserts
27″ and 11¾″
Roof screws
1¼″ · 40 pieces
Assembled height
Approx. 102″ (2.58 m) from the base of the lower insert to the top of the cap in this model. Actual height depends on joint overlap.
Manufacturer’s dimensions

Arkam lists about 95–130″ (2,410–3,310 mm) for kits with different pipe lengths. Its drawing measures from the base to the outlet below the cap.

System type
Rigid connector + insulated double-wall chimney

Before you order

Confirm the complete installation route

01

Match the heater

Confirm the exact heater model, flue diameter and outlet position. A matching nominal diameter does not by itself confirm the installation.

02

Review the structure

Plan every ceiling, roof or wall penetration around the actual framing, finishes and required heat protection.

03

Follow the approved documents

The heater and chimney instructions plus applicable building and fire requirements govern the final clearances and assembly.

This route is a strong fit for

  • Sauna layouts with a clear vertical route above the heater
  • Projects where a roof penetration is preferred over a wall exit
  • New installations that can coordinate the chimney position with the roof structure

Compare routes

All sauna chimney kits

The three products solve different chimney paths. Choose the route first, then verify it against the heater and building.

Common questions

SB214 chimney kit FAQ

Is the wood-burning sauna heater included?

No. This page is for the chimney kit only. The heater, stones and heat shields are selected separately.

Can this kit be used with any sauna stove?

The connection is 115 mm, but compatibility is not based on diameter alone. Confirm the heater model, outlet position and manufacturer instructions before ordering.

Are the shown dimensions installation clearances?

No. They are reference component and assembled dimensions. Required clearances and penetration details come from the heater and chimney instructions plus local code.

Expert help

Not sure which chimney route fits your sauna?

Send us the heater model and a simple room or roof plan. We’ll help identify the right product path before you order.

Talk to a Sauna Expert
