Match the heater
Confirm the exact heater model, flue diameter and outlet position. A matching nominal diameter does not by itself confirm the installation.
Through wall

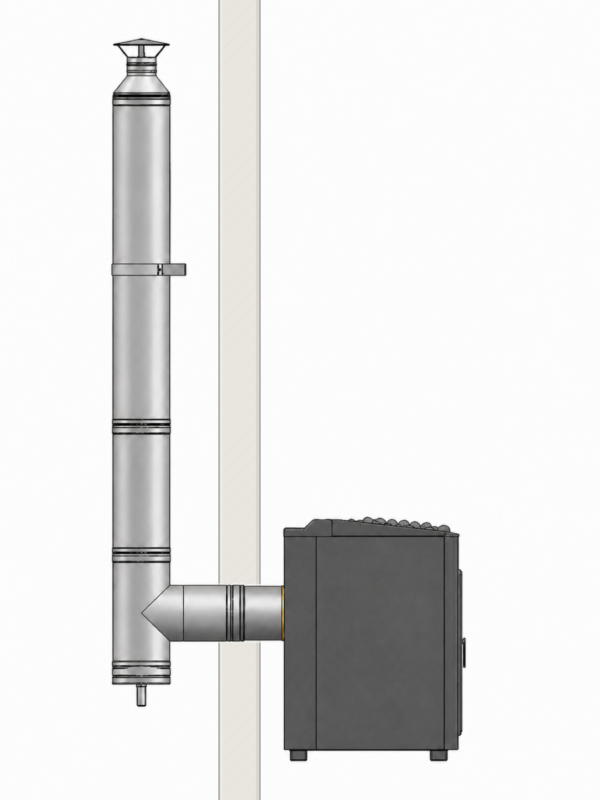

Route illustration shown with a sauna stove. Heater not included.
Sauna chimney kit · Side-exit stack
Chimney Out the Side
CHISIDSide-exit chimney stack
The CHISID carries the flue through the sauna wall and continues vertically outside. It is the right starting point when the project already has the required heater-side connection; choose the SB225 when a complete 90° elbow route is needed.
$1,058.50CAD
Sauna heater, heater-side elbow or connector, sauna stones, floor shield and wall heat shields are not included. Narvi heaters require a separate adapter.
- Compatibility checkWe can review the heater and planned route before fulfilment.
- Canada-wide supportShipping options are confirmed for the destination.
Product overview
Side-exit chimney stack
The CHISID side-exit sauna chimney kit routes a compatible 115 mm wood-heater flue through the wall before rising vertically outside the sauna. Its insulated exterior sections, tee and wall bracket create a stable outside stack while the wall pass-through and finishing pieces complete the transition.
This package does not include the heater-side 90° elbow shown in the complete SB225 system. Review the proposed route with ZAPARA before ordering so the correct connector or adapter can be matched to the exact heater. Narvi heaters require a separate adapter.
System components
What’s included
Components follow the manufacturer’s system diagram. Final quantities and section lengths should be checked for your installation.
- 01Chimney cap
- 02Two 40 in insulated vertical chimney sections
- 0316 in insulated tee section
- 04Wall support bracket
- 05Lower clean-out or drain component
- 06Wall pass-through and finishing components
- 07Exterior stack connection pieces shown in the manufacturer diagram
Technical reference
Chimney kit specifications
- Installation route
- Through the wall, then vertically outside
- Heater connection
- 115 mm (4.52 in)
- Insulated chimney outside
- 8 in (203 mm)
- Insulation
- 1.75 in manufacturer specification
- Reference overall height
- 116 in (295 cm)
Before you order
Confirm the complete installation route
Review the structure
Plan every ceiling, roof or wall penetration around the actual framing, finishes and required heat protection.
Follow the approved documents
The heater and chimney instructions plus applicable building and fire requirements govern the final clearances and assembly.
This route is a strong fit for
- Projects that cannot use a straight roof penetration
- Layouts with the required heater-side connector already specified
- Harvia, HUUM, LeisureCraft and other compatible 115 mm outlets after model verification
Compare routes
All sauna chimney kits
The three products solve different chimney paths. Choose the route first, then verify it against the heater and building.
Common questions
CHISID chimney kit FAQ
Does this kit include the heater-side elbow?
No. CHISID is the side-exit stack and wall-transition package. Select SB225 when the complete route must include the 90° heater-side elbow.
Which heater brands can use this chimney?
The manufacturer lists compatibility with many 115 mm outlets, including LeisureCraft, HUUM and Harvia. The exact heater model and connection route still need to be verified. Narvi requires a separate adapter.
Can I use the reference dimensions as required clearances?
No. Reference dimensions describe the system. Follow the model-specific installation documents and local building and fire requirements for clearances.
Expert help
Not sure which chimney route fits your sauna?
Send us the heater model and a simple room or roof plan. We’ll help identify the right product path before you order.
