Firebox top plate
An 8 mm steel top plate over the firebox.
ZAPARA wood-burning sauna stove · Made in Ukraine

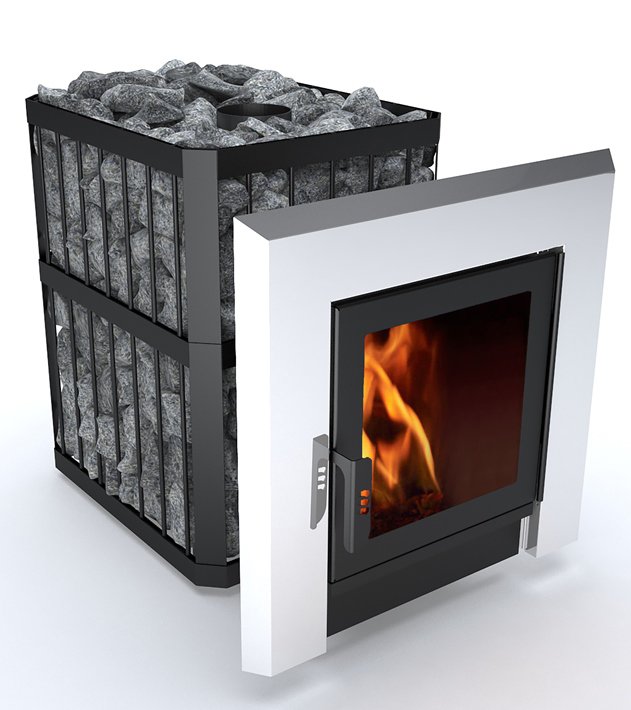

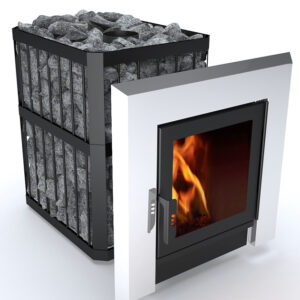

ZAPARA Bar Panorama Wood-Burning Sauna Stove
The ZAPARA Bar Panorama pairs an open stone basket with panoramic glass and an external firebox. Made in Ukraine, this wood-burning sauna stove offers an 18 or 26 kW choice, with exposed stone in the sauna and a view of the fire in the adjoining space.
Sale price from$2,200.00CAD
18 kWUp to 18 m³ · 636 ft³Outside loadingWood-fired
3-year ZAPARA warrantyAs listed on the current ZAPARA product
Made in UkraineUkrainian steel stove craftsmanship
Made in Ukraine
Steel where it matters.
An 8 mm steel plate forms the top of the firebox, directly above the fire.
Thickness refers to the named components. Individual side, rear and bottom wall thicknesses are not specified.
Configure your stove
Select your model and options
Choose the size and loading arrangement, then complete your stove with stones and accessories.
Product information
ZAPARA Bar Panorama Wood-Fired Sauna Heater with Stone Basket
The ZAPARA Bar Panorama pairs an open stone basket with panoramic glass and an external firebox. Made in Ukraine, this wood-burning sauna stove offers an 18 or 26 kW choice, with exposed stone in the sauna and a view of the fire in the adjoining space.
A basket around the firebox makes the sauna stones a visible part of the heater.
310 × 310 mm glass, approximately 12.2 × 12.2 in, with a remote fuel channel.
Two stove sizes share an 8 mm steel firebox top plate, approximately 0.31 in.
A wood-fired sauna heater with a surrounding stone basket
Bar Panorama places the stone load around the firebox within an open cage. The visible stone shapes give the heater a different character from a stove with a solid outer casing. In a timber-lined sauna, the basket becomes a substantial part of the interior composition. Choose this model when you want both an exposed stone surround and a larger view of the fire on the loading side.
Panoramic glass with an external firebox
The 310 × 310 mm heat-resistant glass measures approximately 12.2 × 12.2 in. Its loading door sits at the end of a remote fuel channel, facing the room beside the sauna. This keeps the stone basket in the hot room while placing the fire view in the adjoining space. Consider the basket position and the door surround as two parts of one installation layout.
Bar Panorama 18 and 26 kW room-size options
Choose between the 18 kW model for sauna volumes up to 18 m³, approximately 636 ft³, and the 26 kW model for up to 26 m³, approximately 918 ft³. These are maximum room-volume figures rather than floor-area measurements. Ceiling height, glazing and insulation matter when comparing your sauna with the listed size, especially where the room includes a large glass front.
8 mm steel top and model-specific dimensions
The firebox has an 8 mm steel top plate, approximately 0.31 in. The 18 kW body is listed at 460 mm wide and the 26 kW body at 490 mm, approximately 18.1 and 19.3 in. Overall length also differs and includes the remote fuel channel. Both versions have a 120 mm flue outlet. Use the full specification table to compare the exact selected model.
Build a Bar Panorama configuration for Canada and the USA
For a Canadian or US sauna project, start with the room size and outside-loading arrangement, then review the optional stone packages. Accessories remain separate items in the price summary. The page shows CAD prices and both metric and imperial measurements, making it easier to share a consistent selection with your designer or builder before requesting a destination-specific quotation from ZAPARA.
| Specification | 18 kWPKS-02 PC3 | 26 kWPKS-04 PC3 |
|---|---|---|
| Sauna volume | Up to 18 m³ · 636 ft³ | Up to 26 m³ · 918 ft³ |
| Height | 730 mm28.7 in | 765 mm30.1 in |
| Width | 460 mm18.1 in | 490 mm19.3 in |
| Length, including fuel channel | 830 mm32.7 in | 875 mm34.4 in |
| Stove weight | 70 kg154.3 lb | 90 kg198.4 lb |
| Made in | Ukraine | Ukraine |
| Firebox top plate | 8 mm | 8 mm |
| Flue outlet diameter | 120 mm4.72 in | 120 mm4.72 in |
| Glass | 310 × 310 mm12.2 × 12.2 in | 310 × 310 mm12.2 × 12.2 in |
| Manufacturer stone capacity | Not published | Not published |
| ZAPARA stone package | 140 kg · 309 lb | 160 kg · 353 lb |
Specifications are shown by stove size. Imperial measurements are converted and rounded. Dimensions and stove weights are maximum values where stated.
Overall lengths include the remote fuel channel. Confirm the dimensions for your selected loading arrangement before planning the installation.
Stone packages are optional ordering quantities matched to the selected stove size. They are not a rated stone capacity.
ZAPARA Bar Panorama: questions and answers
Which sauna stone packages can I select?
The configurator offers an optional 140 kg package for the 18 kW Bar Panorama and a 160 kg package for the 26 kW model, approximately 309 and 353 lb. The price summary lists the selected stones separately from the stove. These are ordering quantities; follow the supplied instructions for arranging the stones.
Can Bar Panorama be loaded from inside the sauna?
Bar Panorama is configured for outside loading through its remote fuel channel. If an inside-loading door is part of your room design, compare the standard Bar family, which offers both loading arrangements.
ZAPARA product support
Specifications and installation support
Compare the stove sizes or request the installation manual for your selected ZAPARA configuration.
Plan your installation
Prepare the right space for your stove
Start with the exact model, its loading position and the manufacturer documentation.
Before you order
01 · Match the sauna volumeCompare your sauna with the range shown for the selected model. Glass, masonry and insulation affect the heat required.
02 · Plan the loading positionThis family uses a remote fuel channel for loading from an adjoining room.
03 · Confirm chimney and clearancesMatch the flue diameter to the selected model and follow the model-specific manual. Have the layout checked against local building and fire requirements.
