UKU Local Sauna Control – Wood

UKU Local sauna controller makes sauna heating easy and comfortable. You can connect it to the lights/ventilation and steamer functions of your sauna and regulate all of them from the remote control. To ensure a safe sauna experience, UKU is equipped with a door sensor, overheating protection and a child safety lock. UKU can be used with different manufacturers’ heaters.

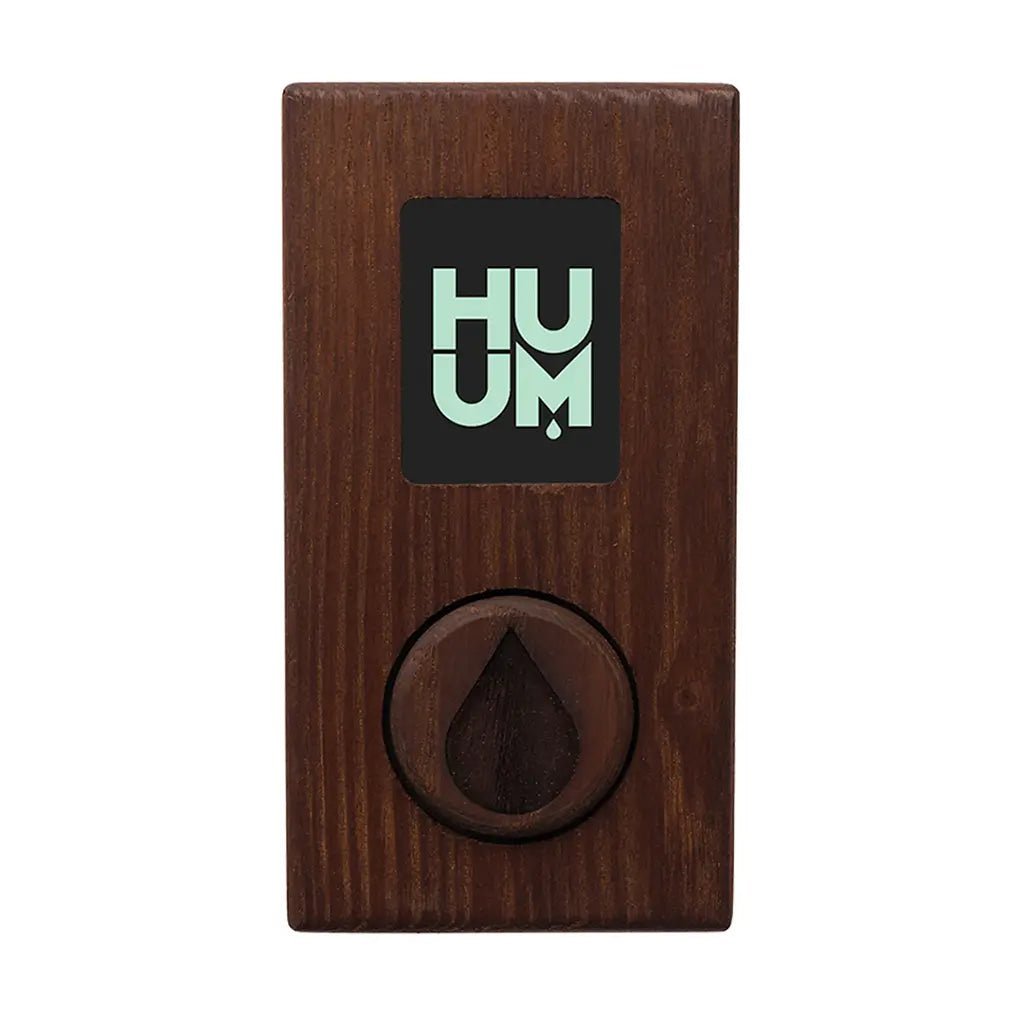

UKU sauna control panel WOOD casings are handmade from thermo-treated ash wood, making each one unique with its own wood pattern.

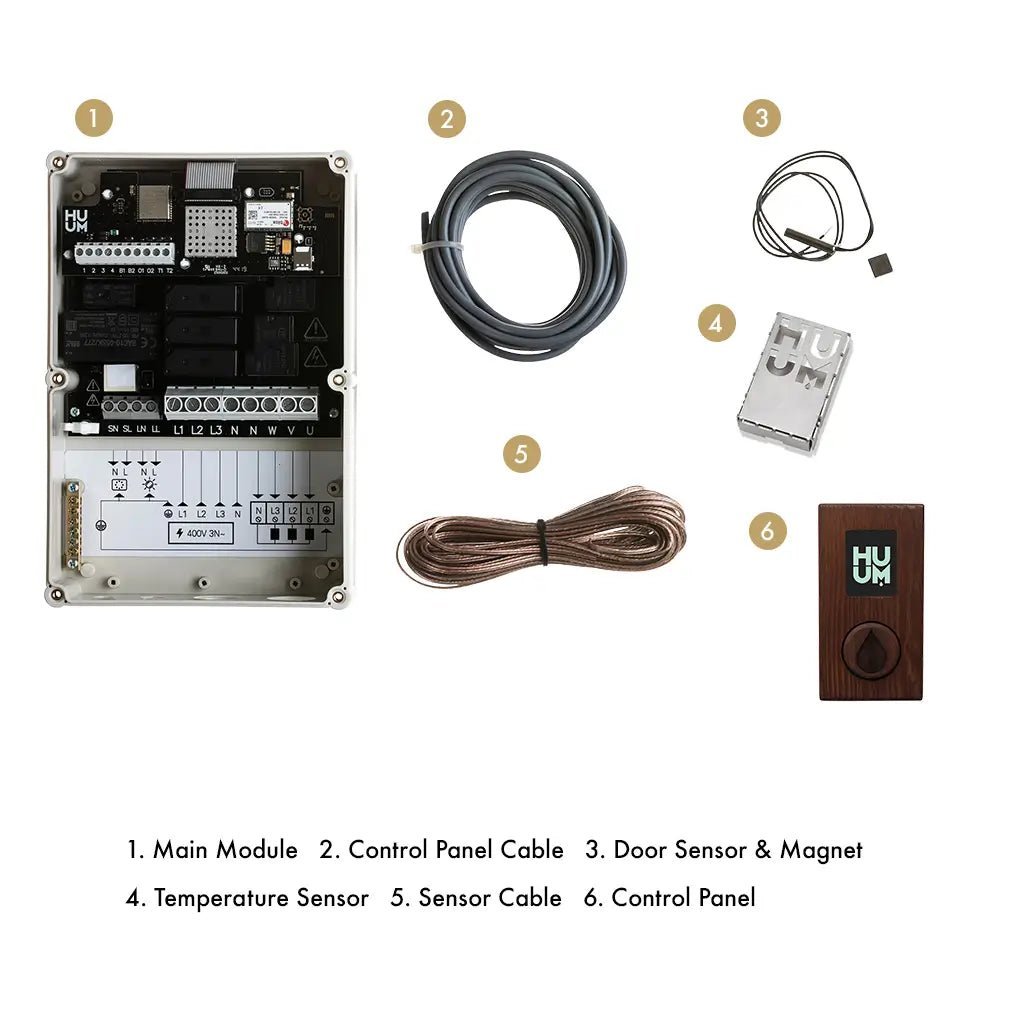

The devices set includes:

• UKU control panel (4.1 x 2.2 x 0.9 in / 105 x 55 x 22 mm)
• Main module (6.89 x 9.84 x 2.95 in / 175 x 250 x 75 mm)
• Temperature sensor
• Door sensor
• Temperature and door sensor cables (197+197 in / 5+5 m; 2×28 AWG)
• UKU control panel cable (118 in / 3 m; 4×22 AWG)

Specifications:

• For heaters with power up to: 11 kW
  With UKU extension box up to 18 kW
• Temperature : 40-110 °C / 104-230°F
• Power supply: 240 V 2~
• Heating time (h): 3; 6; 12; 18
• Sauna controller: only from the control panel

Download HUUM UKU Control System Manual
